Android based Industrial fault monitoring (detection) system

Project Cost: 7,900

Project Code: 1438

Description of the project:

Android based Industrial fault monitoring system has two sensors. The first sensor is an LPG Gas sensor and the second sensor is a Temperature sensor. If any one of these sensors has crossed the threshold level then a buzzer is turned on and at the same time, a warning intimation is sent to an android mobile using Bluetooth technology. This project can also be used in our homes or in hotels. Wireless communication technology is used to send messages to Android mobile. Bluetooth technology is used in this project.

Video of the project: Android based Industrial fault monitoring system

Block Diagram:

Android based Industrial fault monitoring system

You will get the following documents with this project:

  1. Project Report in pdf format and in word format ( .doc or .docx )
  2. Circuit diagram
  3. PCB layout
  4. Microcontroller Program in assembly language
  5. Hex file of the microcontroller code
  6. Android application installation file ( .apk file)
  7. Datasheets of all the components / ICs used in the project
  8. Power point presentation / PPT file

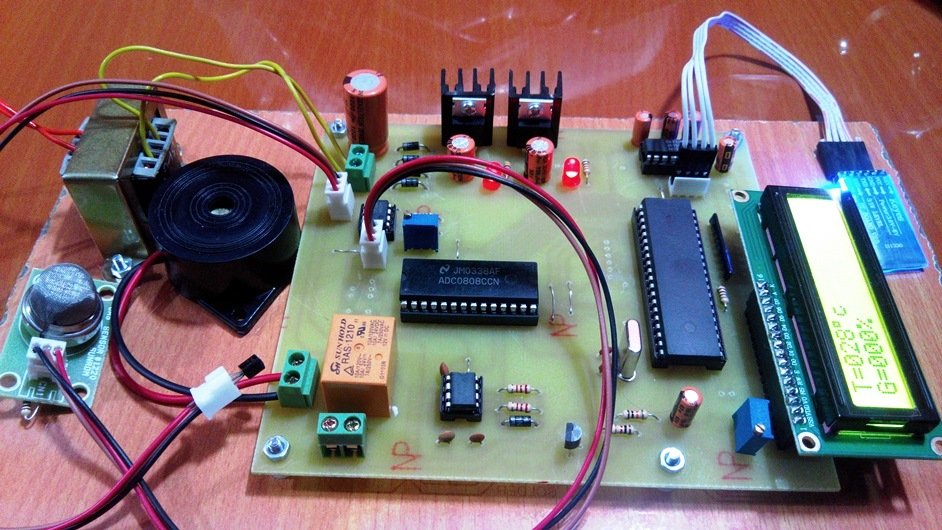

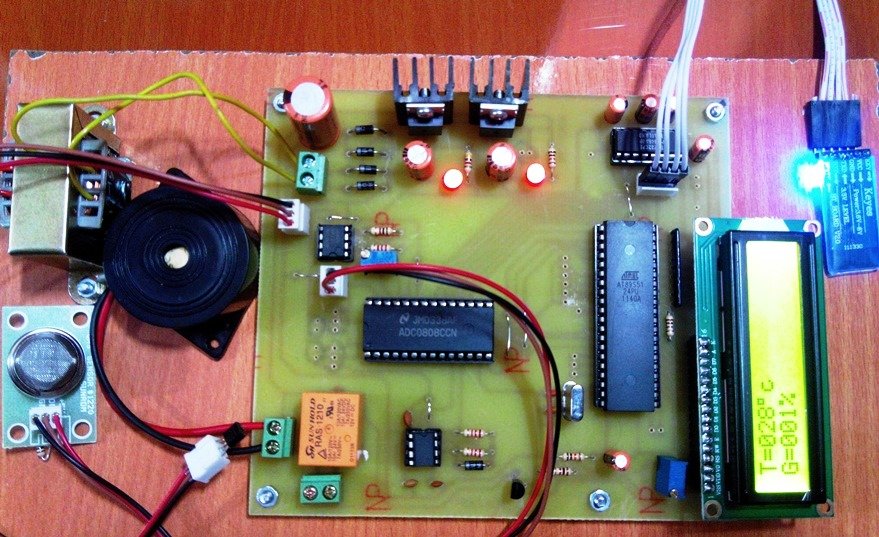

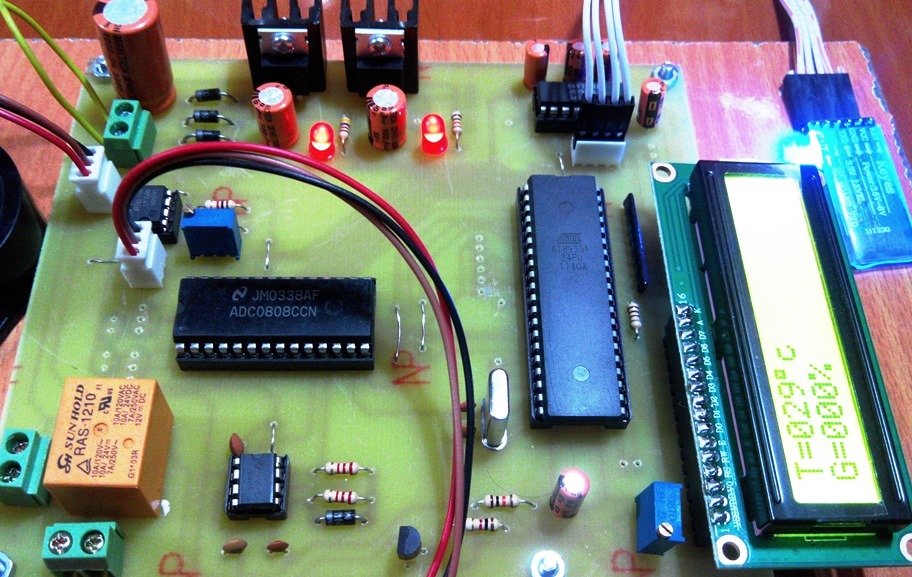

Project Photographs:

Android application
Android application

Description in detail:

Various important blocks of the system are:

  1. Microcontroller
  2. Android mobile with the application installed.
  3. Bluetooth Receiver and decoder for Wireless communication
  4. LCD Display
  5. LPG gas sensor
  6. Temperature sensor
  7. Buzzer

Applications of Android based Industrial fault monitoring system:

  1. This project can be used in Industries, homes, offices, and Hotels.

Advantages of Android based Industrial fault monitoring system:

  1. This project gives early warning of faults generated.

Future Development:

  1. We can provide a voice feedback system.
Questions and answers about this project:

Question: Which technology is used in wireless communication techniques?

Answer : We have used Bluetooth technology.
