Android mobile based Security lock for Bike ignition

Android mobile based Security lock for Bike ignition

Project Cost: 5,600

Project Code: 1411

Download the synopsis of the project

Description of the project:

Android mobile based Security lock for Bike ignition is a replacement for traditional locks on the bike and two-wheelers. In the traditional two-wheeler locks, a user inserts a key in the ignition lock and then he can start the vehicle. However, thieves can steal the bike using duplicate keys. We have designed android based bike locking system to avoid this problem. This project provides an additional security layer after the ignition lock. In this project, the user needs to insert a key and then the user needs to send a password from his/her mobile using an android app.

Working of the Android bike locking system project:

At first, the user needs to do the Bluetooth pairing of his mobile with the Bluetooth receiver in the project. Then the user needs to enter a password using an Android mobile. This password is received in the circuit using If the password is correct then the DC motor is rotated. A buzzer is activated whenever a wrong password is entered. LCD display shows various information messages and instructions to the user. Wireless communication is used to send commands to the project. Bluetooth technology is used in this project.

Description in detail:

Various important blocks of the system are:

  1. Microcontroller
  2. Android mobile with the application installed.
  3. Bluetooth Receiver and decoder for Wireless communication
  4. LCD Display
  5. Motor Driver
  6. DC Motor
  7. Buzzer

Video of the project: Android mobile based Security lock for Bike ignition

Block Diagram:

Android mobile based Security lock for Bike ignition

You will get the following documents with this project:

  1. Project Report in pdf format and in word format ( .doc or .docx )
  2. Circuit diagram
  3. PCB layout
  4. Microcontroller Program in assembly language
  5. Hex file of the microcontroller code
  6. Android application installation file ( .apk file)
  7. Datasheets of all the components / ICs used in the project
  8. Power point presentation / PPT file

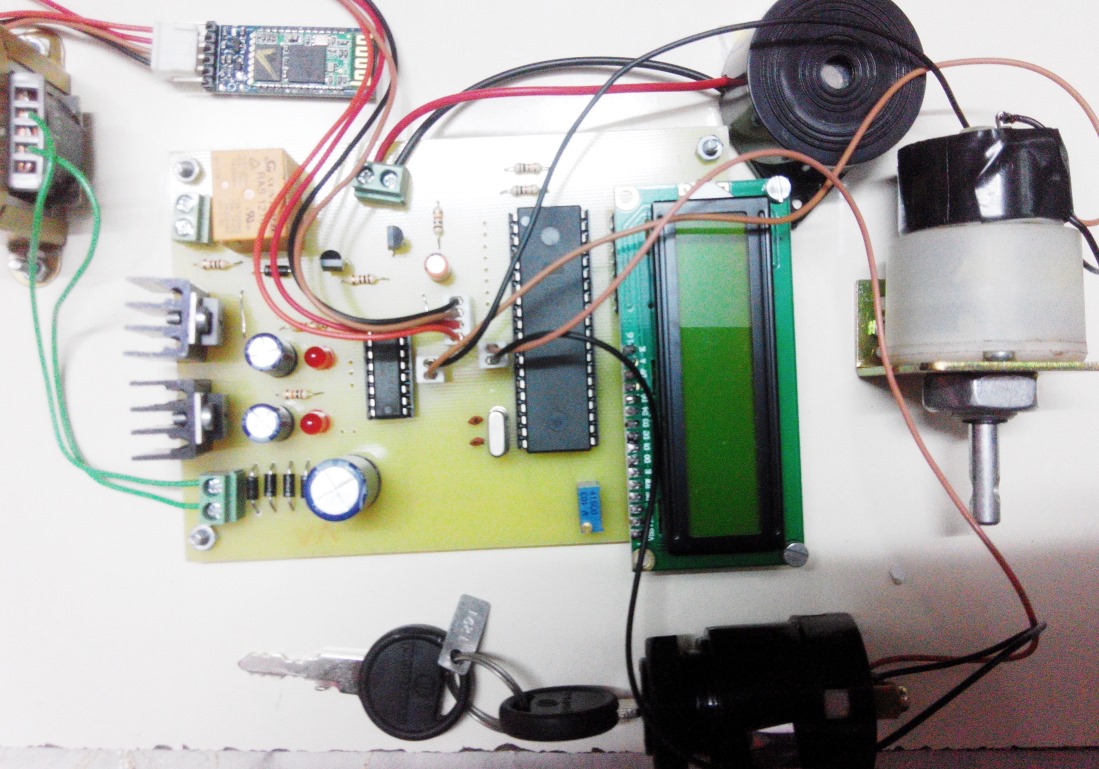

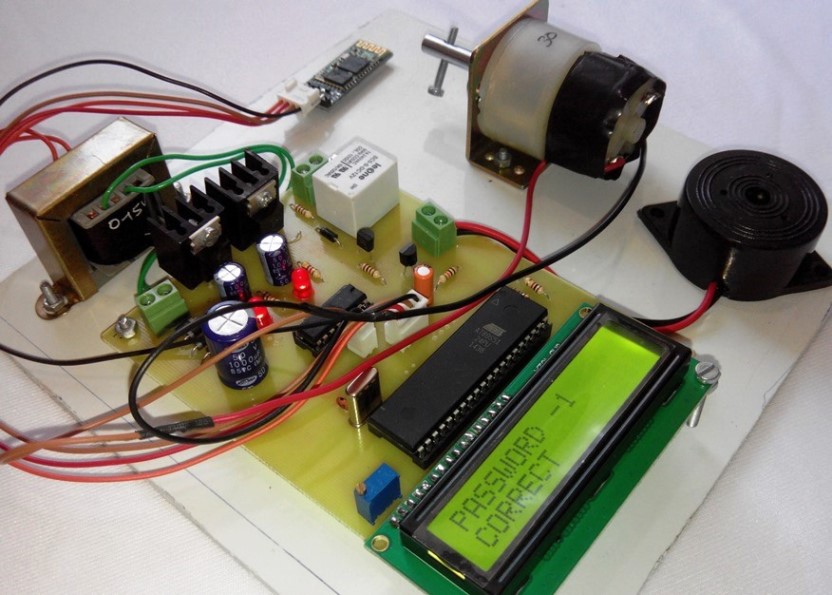

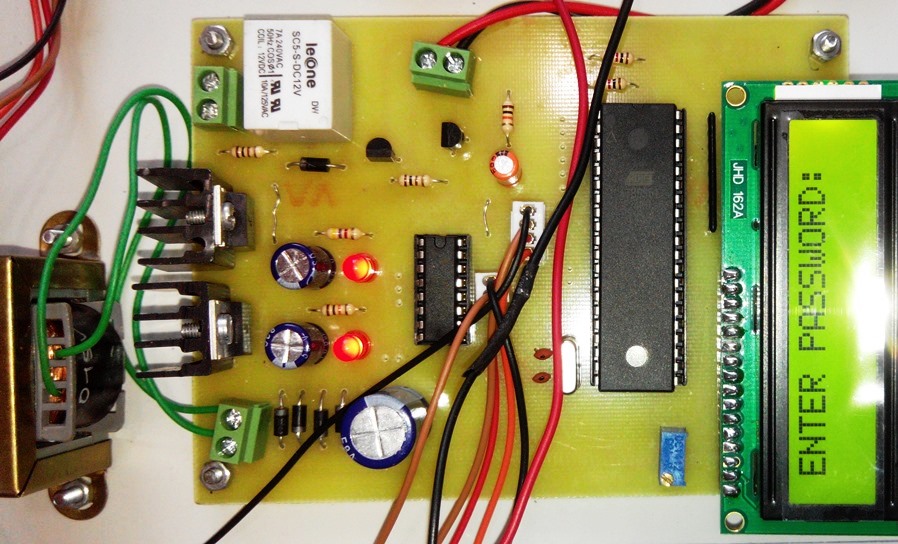

Project Photographs:

Applications of Android mobile based Security lock for Bike ignition:

  1. This project can be used in Bikes, Cars, and vehicles.

Advantages of Android mobile based Security lock for Bike ignition:

  1. This project is easy to use.

Future Development:

  1. We can provide a voice feedback system.

Question: Which technology is used in wireless communication techniques?

Answer: We have used Bluetooth technology.
