Office cab tracking system using GPS and GSM technology

Office cab tracking system using GPS and GSM technology

Project Cost: 10,900

Project Code: 1863

Download the Synopsis of the project

Description of the project

In day-to-day life working women’s security is very important. Especially BPO and IT industry women employees are working late at night. Their company provides them cab facility for transportation. However, security for them is not enough, especially at night times. So we have designed an Office cab tracking system using GPS project. In this project, we have mainly tracked the cab vehicle and SMS is sent to the company authority as well as to the relative of the employee.

If a women employee finds herself in a difficult or some kind of dangerous (problematic) situation then she can press only one switch and then an alert message with vehicle coordinates is sent to the respective numbers. The message contains an alert message, longitude, and latitude with the cab number. We have provided a key switch for instant alert messages. This helps to track the cab and it is very helpful to the working women’s security.

Description in detail:

  1. Microcontroller: In this circuit, we have used an 89s51 microcontroller. This is from the 8051 family.
  2. GPS modem: The Global Positioning System (GPS). GPS modem use to tracking exact location.
  3. GSM modem: We have used GSM modem for sending coordinate and alert message. GSM modem sends an alert messages to the respective numbers.
  4. LCD Display: 16 by 2 Liquid Crystal Display (LCD) is used in this project.
  5. MAX232: We have used RS232 for serial communication.

Video of Vehicle Tracking System using GPS and GSM modem project

YouTube video coming soon. Video for this project is not available right now, we are planning to upload video soon. Meanwhile you can watch video other project in category: GPS based project.

Block Diagram of Office cab tracking system using GPS project:

Office cab tracking system using GPS and GSM technology

You will get a CD with this project containing the following documents:

  1. Project Report in pdf format and in word format ( .doc or .docx )
  2. Circuit diagram
  3. PCB layout
  4. Microcontroller Program in assembly language
  5. Hex file of the Microcontroller code
  6. Datasheets of all the components / ICs used in the project
  7. Power point presentation / PPT file

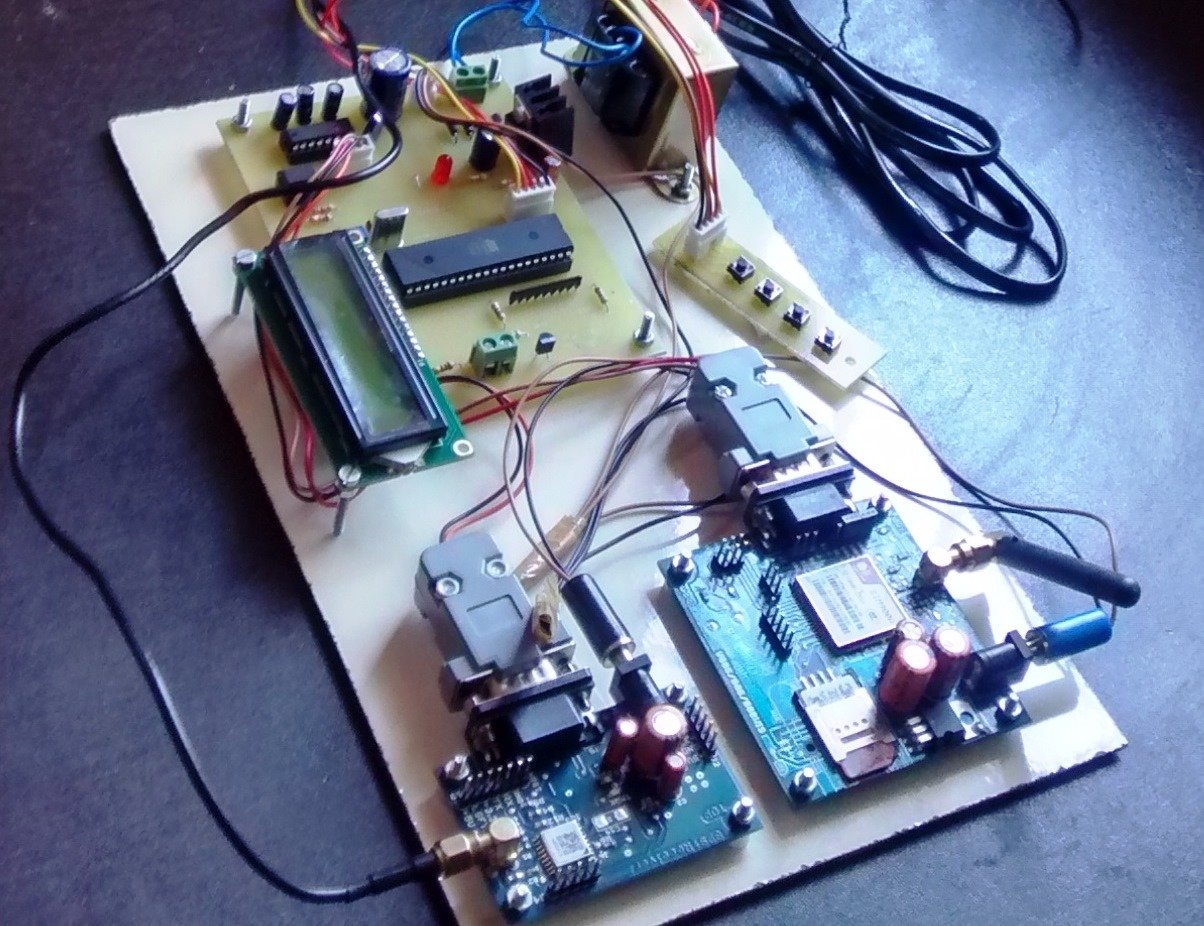

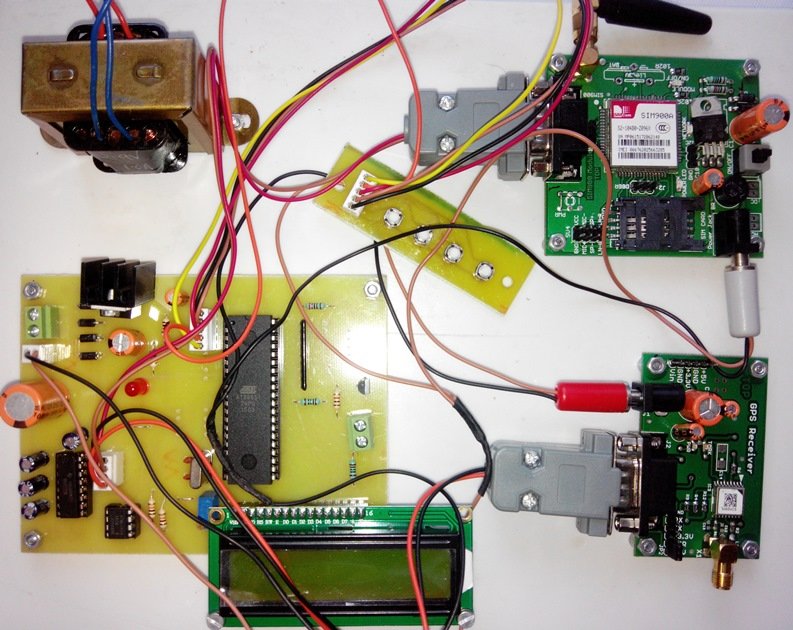

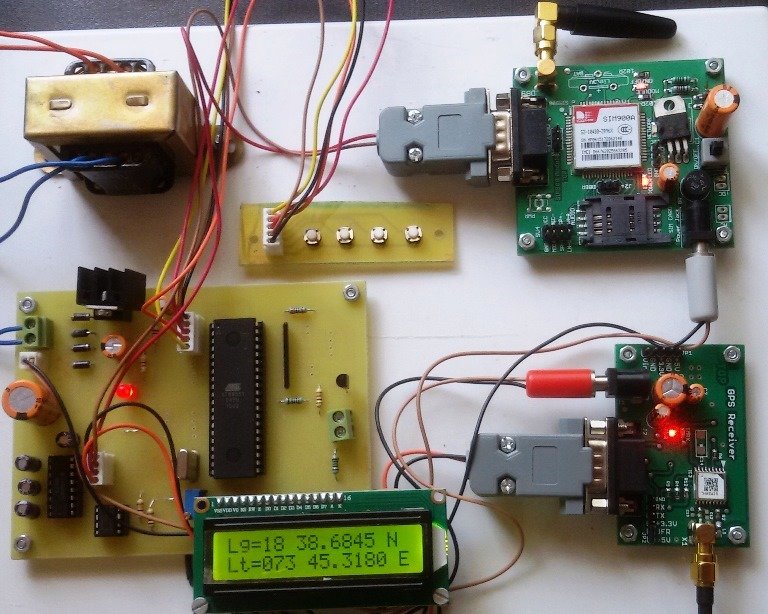

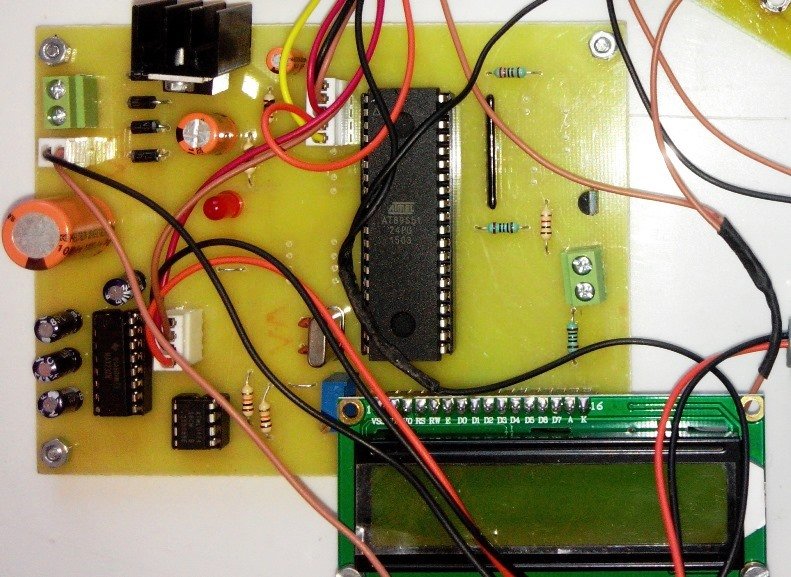

Photographs of Office cab tracking system using GPS project:

The following are the important modules in this project:

Applications, Advantages, and Future scope of Office cab tracking system using GPS

  1. We can use this project in Office Cab, Private vehicles, School buses, and Ambulance tracking.
  2. We can use this project to track bank vehicles carrying money or other important things.
  3. This project is fully automatic and does not require any manual operation.
  4. As a future development, we can add a voice alert system.

Questions and answers about this project:

Question: Can we name of the place instead of longitude and latitude?

Answer: No, we can not send location name.

One thought on “Office cab tracking system using GPS and GSM technology

  • karthick

    i have query.. im looking for a gps vehicle monitoring equipment for office cab & it should have employee Access card options & this ill helps to know exact headcount available in Office Cab…

    eg: once the employee got into the cab he/she should have to access the GPS Equipment with there ID card( contain access in it ) . so that Cab Monitoring team can know where is the Cab currently travelling & who are all available in the cab.
