Vehicle Tracking System using GPS and GSM modem

Project Cost: 10,900

Project Code: 1801

Download the Synopsis of the project

Description of the project:

In the Vehicle tracking system project, you can track the location of your vehicle. Also, if you have Google Maps installed on your smartphone then you can get the exact location of the vehicle on Google Maps. This project gives Minute-by-minute updates about vehicle location by sending a text SMS through a GSM modem. This SMS contains a URL that has the longitude and latitude of the location of the vehicle.

The user needs to click on the URL in the SMS, then the smartphone will open the link in Google Maps and will show a red marker location on the map. This red marker represents the location of the Vehicle. The microcontroller is the central processing unit CPU of our project. The microcontroller gets the coordinates from the GPS modem and then it sends this information to the user in Text SMS. A GSM modem is used to send this information via SMS. SMS will be sent to the owner of the vehicle.

GPS based Vehicle tracking system is required in many situations, like in the case of car theft detection. Car tracking using GPS project will be useful when our car is stolen. Also if somebody wants to track the school bus of their children, at that time it will be helpful to find out the location of the kids. One more situation is when some company wants to track the location of the cab or transport bus of an employee then, in this case, this vehicle tracking system will be very useful.

Video of Vehicle Tracking System using GPS and GSM modem project

In the GPS tracking system,the location of the vehicle is sent to a remote place and it is done by a GSM modem. Global Positioning System (GPS) modem requires a minimum of 3 satellites to calculate the exact location. This modem communicates only in a single way with an 8051 microcontroller. This means that it can only transmit data to the microcontroller. GPS Modem does not receive any data from the microcontroller. At the same time, the GPS modem does not send data to Satellites, it only receives signals from satellites.

Block Diagram of Vehicle Tracking System:

Vehicle Tracking System using GPS and GSM modem

You will get the following documents with this project:

  1. Project Report in pdf format and in doc (word) format
  2. Circuit diagram
  3. PCB layout
  4. Microcontroller program in assembly language
  5. Hex file of the microcontroller code
  6. Datasheets of all the components / ICs used in the project

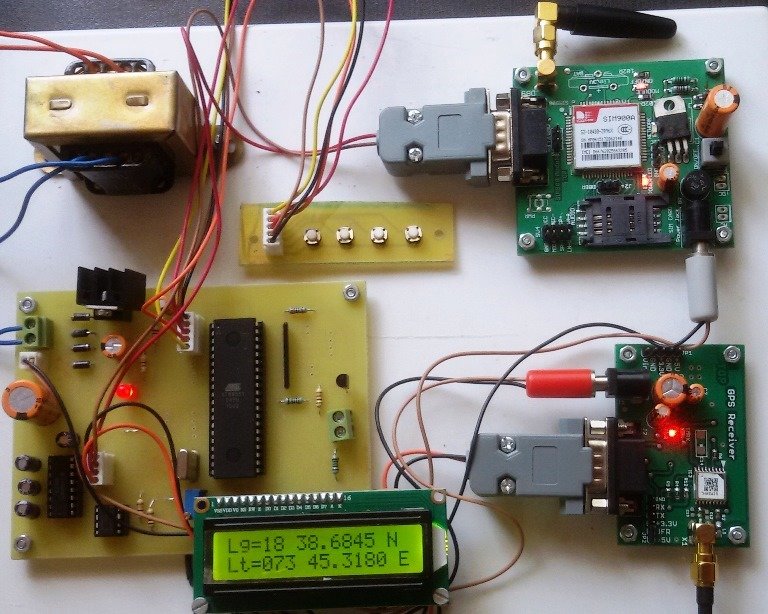

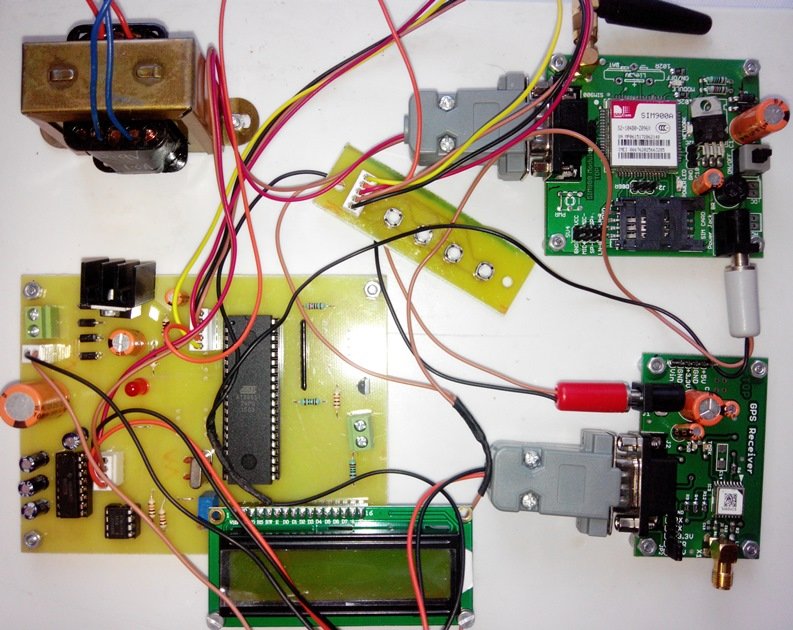

Project Photographs:

Description in detail:

We have seen that there are various GPS projects available and this is one of the important projects among them. This project consists of the following blocks:

  1. GPS Modem – This transmits data out to the microcontroller.
  2. GSM Modem – This receives data from the microcontroller.
  3. Microcontroller – It deals with all the input and output devices.
  4. LCD Display
  5. Keypad
  6. Max232

Applications and Advantages of Vehicle Tracking System:

  1. School transport Tracking: “Vehicle tracking system” can be used as a GPS tracking device for school buses.
  2. This project can be used as an Office cab tracking system, for the detection of cabs or cars of companies.
  3. Theft Protection: This project can be very useful when your vehicle or car is stolen.
  4. We can implement this project in our bikes, two-wheeler, motorcycles, and four-wheelers as well.
Vehicle tracking text sms
Vehicle tracking system text sms

Contents of Text sms are as below:

Coordinates of Vehicle:-
Longitude = 18 38.6878 N
Latitude = 73 45.3423 E3

Future Development:

  1. We can develop this project using Arduino. Arduino Vehicle Tracker System using GPS & GSM is implemented using an Arduino Uno board.
  2. We can monitor some parameters of vehicles like overheating or LPG gas leakage
  3. We can dial an emergency call if the vehicle goes out of a certain / pre-decided track.

How to track the location on the actual Map

The answer to this is simple, if the user has a smartphone then he/she can simply click on the URL in the SMS received.

However, if the user does not have a smartphone then, it would be time-consuming to track location on Printed maps. But nowadays various websites and apps are available on the internet which show an online map. Google Maps is one of the main and most useful websites. You can use any one of these websites to track or find the location of the vehicle. You can track the location using Longitude and Latitude received in SMS.

Using these maps you can track vehicles and get the exact location as well as directions to go to those places from your current/desired location. All you need to do is copy the contents of Text SMS received from SMS based Vehicle tracking system using GPS into Google Maps.

Vehicle tracking on Google Map
Questions and answers about this project:

Question: Which GSM modem is used in this project? can we use a mobile handset instead of the modem?

Answer : We have used SIMcom 900 GSM modem. No, we can’t use mobile handset

Question: Can we add sensors to this project? Can we enhance this project to add some more modules?

Answer : Yes, we can enhance this project.We can add these Modules: LPG gas sensor, Temperature sensor etc.

35 thoughts on “Vehicle Tracking System using GPS and GSM modem

  • satish gupta

    Instead of GSM
    Can we CDMA?
    what are the things favoured to choose GSM over CDMA?
    can you please answer this.to my mail id.

  • shamita

    what is the use of LCD in this project when the message is send to mobile
    please reply as soon as possible

    • Microtronics Technologies

      HI shamita, this is an educational project, we have used LCD display to show various messages. Various messages are displayed to understanding the current state / progress of the project. Like invalid gps co-ordinates, sending message, message sent. This will also helps us to find out the error/problem while designing the project. In actual implementation, LCD will be replaced by LEDs of different colors which will indicate the status of project.

    • sumit tiwari

      how to calculate latitude and longitude in this project

  • Rajanikanth

    Is this model possible to implement in any vehicle, and thus it gives the exact location instead of giving the longitude & latitude in message or it is possible to know the exact location by enabling the gps in our handset ( by using road map it gives the movement of vehicle).

  • Ajitesh singh

    How can we connect 2 uart base device i.e gsm and gps using 89s52.??

    • Microtronics Technologies

      Hi Ajitesh singh, your question is valid since there is single RX and single TX pin for 8051 microcontroller (which means only one uart port). we can use UART Switch so that we can use two Serial Port Applications.

  • palak

    hello sir, could you pls tell if i order ur project then upyo what range will it track the vehicle? thnks reply soon

    • Microtronics Technologies

      Hi palak, as we are using GPS and GSM modem, it has huge range. The range of GSM modem depends on the mobile network provider range. In other words range depends on which company’s simcard you are using.

  • sandeep

    can we do this project using arm processor

    • Microtronics Technologies

      Hi Sandeep, yes we can implement the project using LPC2148 ARM Processor. It will be “ARM microcontroller based vehicle tracking system”

  • r v sree hari

    i think this project is limited applications ,
    1.i want to add one breath sensor for driver is drinking or not at the time automatically fuel cutoff or stop the engine.
    2.i want to automatic speed controlling when exceeding the speed limit by using the black box.

  • suba

    which language u used for loading google map

  • rakesh

    can we do this project without using gprs……

  • Rahul

    Sir, is it possible that we leave the gps chip while employing only gsm modem connected to car speedometer which sends an sms if the speed of car exceeds a predetermined level. Should this reduce the cost of project.

  • prashanth

    I want to know which device holds the message and what is the complete function of gps and gsm

  • Nitesh

    Sir, i want to buy this project ,what time will it take for this project to reach to me in lucknow..
    and sir whether this is project report is complete.please specify the approx no of pages it contains.(PROJECT CODE: 1801)

  • what is the technology used in this project?

    what is the technology used in this project?

  • Omi

    Hi there,
    I am interested in buying this project But i would like to make few minor changes which includes the GSM Model and the micro controller chip.
    Please advise me where to contact you guys for the payment options and mollification ? p

    Thanks

  • Ankit

    Hi,
    I want to know about sensitivity of the GPS module you are using. Does it get fix if it is indoors?

  • Navin

    Sir muze jo GPS system chahiye vo. Jis car me ham vo device bithayenge. Vo car kaha bhi jane do vo hme jaha ho vaha mere laptop/mob me map me live dikhana mangta hai. Uski currunt position map ke upar dikhani magati hai. Aisa hai kya vo device. Ho to plz reply me. On my mail. Dhananjayskale@gmail.com/ navinskale@gmail.com

  • bosun

    Is vehicle tracking system the same as intelligent vehicle monitoring system?

  • Allan Yobs

    Good day sir , We will able to this nice concept of your project but we would like to ask if there is any further considerations before doing this project ?
    and I would like to know if its ok to use other version of gsm like GSM SIMCOM
    SIM900D Module ?

    Hope for your reply , Thank you !

  • aljinas

    I’m intrested in this topic. I would like to add minute changes can you please help with me that.

  • vats

    hello sir….cn u plz tell me…how to detect the place from lattitude and longitude in google maps???

  • Baria Anil

    “vehicle tracking and locking system based on gsm and gps”
    a project me bana raha hu muje thodi help chahiye

  • shafee

    Which gps module you guys used ? And what was the price ?

  • mani

    I need a system for my car a small device a placed as GPS module and I need to see the car location but no one know the system are inside if you have mail me please and price also

  • patel gunjan

    We requird three model ,gsm ,gps , and rfid in one project .
    U give us this project……?

  • ibrar zia khattak

    why v can not use mobile hand set?? answer on my id plz?

  • Shruti

    Hi,
    I am interested in buying this project but with some modifications.
    I have a few Questions that I want to know-
    Why can’t we use cdma technology in this project?
    And also, why can’t we simply use the mobile phone ?

  • priya

    hi sir
    In this project we are likely to use in boats for tracking .where we use atmel and is it gsm is better to use or cdma?wat should prefer exactly and is there any problem in network in sea? please reply assoon!!

  • keshav

    I m want to make a gps tracker so guide please. .

  • pranish kumar

    I just wanted to know can you change up this project with pic 16f877A microcontroller and also can u use sim900 instead of sim300 ? and which software did you use to write the assembly code? I prefer using MPLAB.

  • harsha

    Is there any disadvantages in the project?what are they
    please give reply as soon as possible
